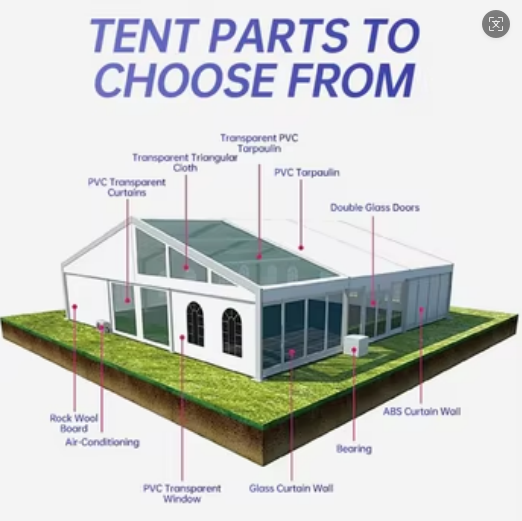

Material Options for Aluminum Tent Enclosures

1. PVC Tarpaulin (Soft Wall)

·Core Features: Waterproof (≥10,000mm water column), UV-resistant (UPF 50+), flame-retardant (complies with DIN 4102 B1/EN 13501-1 Class B), tear-resistant (≥300N/5cm warp/weft).

·Specifications: Standard weight 850g/m² (customizable 650-1200g/m²), thickness 0.6-1.2mm. Available in transparent, opaque white, or custom RAL colors.

·Application: Ideal for events, exhibitions, and temporary shelters. Easy to install/dismantle, with options for roll-up doors or zip-up windows for ventilation.

2. ABS Panel (Rigid Wall)

·Core Features: Impact-resistant (IZOD impact strength ≥15kJ/m²), heat-resistant (-20℃ to 80℃ operating temperature), corrosion-proof, non-toxic, and reusable.

·Specifications: Standard thickness 4mm (customizable 1-10mm), size 1220×2440mm or custom cuts. Colors: natural gray, white, black, or transparent.

·Application: Popular for industrial warehouses, storage tents, and semi-permanent structures. Quick assembly with interlocking systems, no additional waterproofing required.

3. Tempered Glass (Transparent Wall)

·Core Features: High light transmittance (≥90%), safety (breaks into small blunt fragments to avoid injury), wind-resistant (≥0.55kN/m²), and scratch-resistant.

·Specifications: Standard thickness 8-12mm, single-layer or double-glazed (for insulation). Custom sizes available for large-span tents.

·Application: Premium events, trade shows, and luxury temporary venues. Enhances spatial openness and visual appeal, compatible with aluminum frame clamping systems.

4. Sandwich Panel (Insulated Wall)

·Core Features: Thermal insulation (thermal conductivity λ≤0.040W/(m·K)), soundproof (≥35dB sound reduction), flame-retardant (rock wool core meets EN 13501-1 Class A2), and structural rigidity.

·Specifications: Panel thickness 50-100mm (core material: rock wool, EPS, or PU foam), surface material: galvanized steel sheet (0.4-0.6mm) with PE/PVDF coating. Standard size 1000×6000mm.

·Application: Industrial workshops, cold storage tents, and winter events. Suitable for long-term use (5-10 years lifespan) with excellent weather adaptability.

5. Aluminum Composite Panel (ACP)

·Core Features: Lightweight (2.5-3.5kg/m²), high strength (tensile strength ≥250MPa), weather-resistant (anti-fading, anti-oxidation), and decorative flexibility.

·Specifications: Core material: 3003/5052 aluminum alloy (thickness 0.21-0.30mm), composite with polyethylene (PE) or fire-retardant mineral core. Standard size 1220×2440mm, custom colors/finishes (matte, glossy, wood grain).

·Application: High-end exhibitions, brand activations, and permanent temporary structures. Easy to cut into complex shapes, compatible with dry-installation systems.

Selection Guidelines

·Temporary Events: Prioritize PVC tarpaulin (cost-effective, portable) or tempered glass (premium aesthetics).

·Industrial/Storage Use: Choose ABS panels (durability, reusability) or sandwich panels (insulation, security).

·Extreme Weather: Opt for sandwich panels (insulation) or tempered glass (wind resistance); avoid thin PVC in strong winds (>100km/h).

·Aesthetic Requirements: Aluminum composite panels (custom finishes) or tempered glass (transparency) align with high-end branding needs.
